Product details

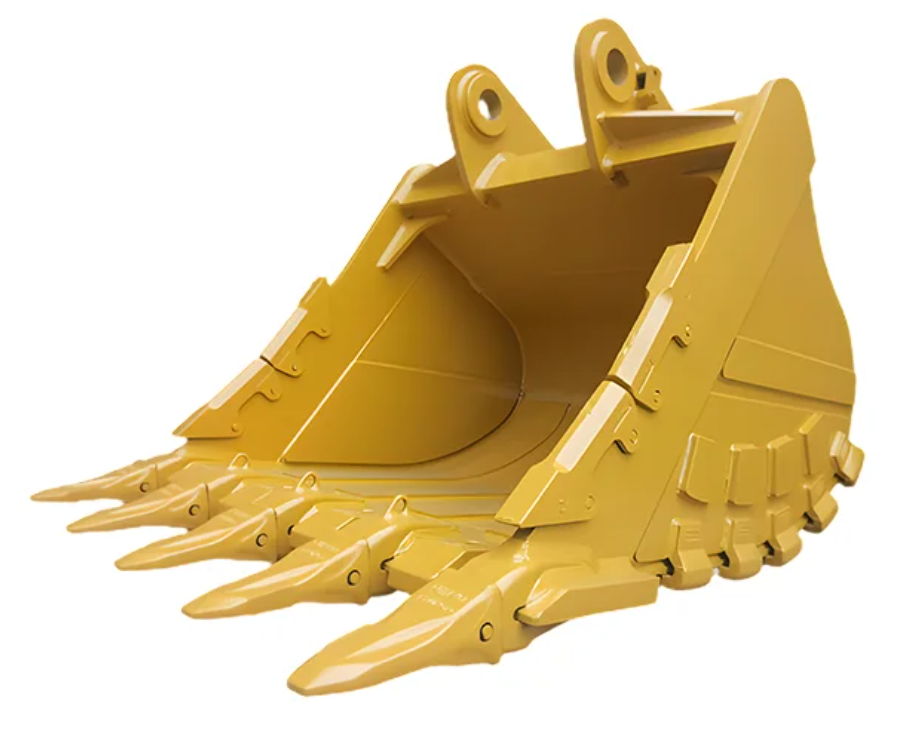

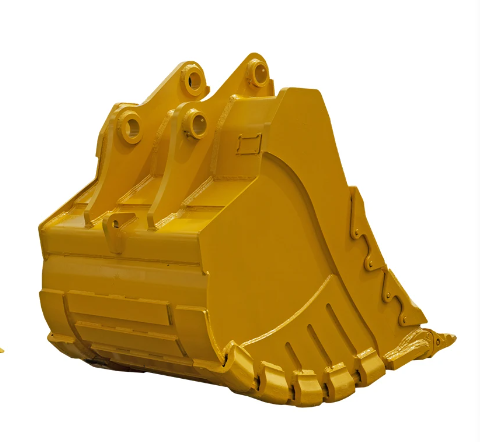

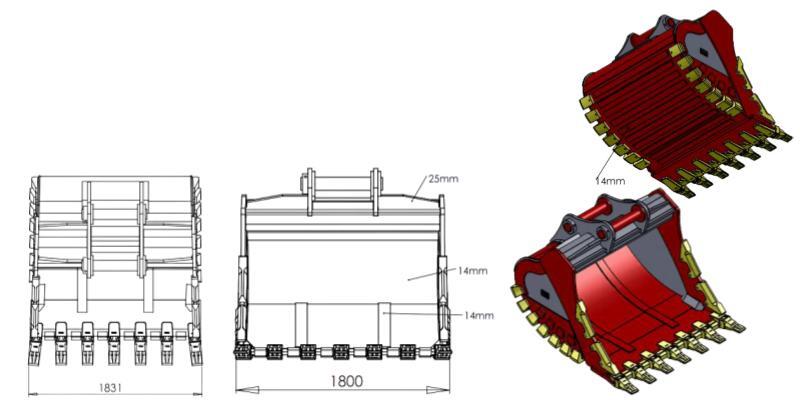

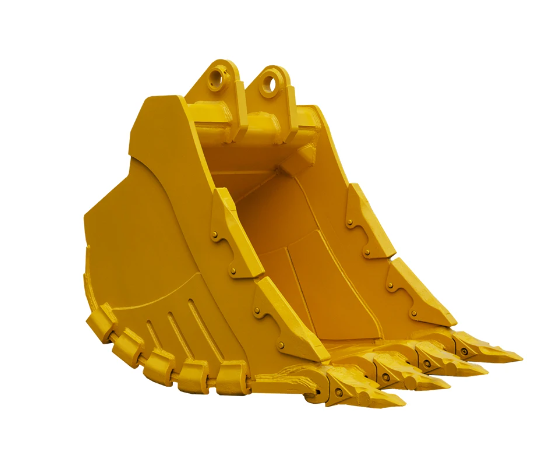

Extreme Rock Bucket
Model	ERB150	ERB250	EBR350	EBR400	EBR450	EBR600	EBR700	EBR800
Opening Size (mm)	450-1200	600-1520	600-1820	750-1820	750-2100	900-2200	900-2300	1200-2400
Material	Q460+NM500 steel plates
Pin Diameter(mm)	Ø 65	Ø 80	Ø 90	Ø 100	Ø 110	Ø 110	Ø 120	Ø 130
Blade Thickness	T 30	T 40	T 50	T 60	T 70	T 70	T 90	T 100
Weight (kg)	740	1002	1576	2250	2467	2864	3682	4993
Excavator (T)	12-18	22-28	30-36	36-44	45-50	54-63	63-72	74-87

● It is designed for highly abrasive cases such as severe rock, providing highest level wear protection.
● Strengthened wear protection and thick steel plates for long durability.● The bucket sizes and shapes can be customized to fit the user’s specific working conditions.
